ExtendFresh™ Plus Temperature Management SystemEnsures ingredients remain fresh for maximum taste and texture using a sensor-controlled system with a variable-capacity compressor. There is one thermistor in the freezer and one thermistor in the refrigerator.
Interior Water Dispenserprovides easy access to filtered water inside the refrigerator
FreshChill™ Temperature-Controlled Full-Width PantryLets you properly store everything from meats to produce with a manual temperature setting. It gives you total control over of the amount of cool air that enters the drawer.
Humidity Controlled CrispersProvide a dedicated storage option with adjustable humidity levels to keep fresh food in an optimal environment.
Slide-Away Split ShelfHelps maximize the storage space and optimize the organization of your refrigerator. The versatile design allows the front of the shelf to retract to accommodate tall items.
Automatic Ice MakerEnsures a constant supply of ice on hand at all times for entertaining and everyday use.
LED LightingIlluminates the inside of the refrigerator and freezer giving for better visibility. Unlike incandescent bulbs, LED lights use less energy, are maintenance-free and never need to be replaced.
Max CoolWhen selected, automatically adjusts the temperature in the refrigerator and freezer to the lowest setting when appropriate. This keeps the refrigerator at the ideal temperature when loading groceries, the doors are frequently opened or in higher room temperatures.
ENERGY STAR® QualifiedProducts conserve energy by exceeding minimum federal energy efficiency.
Metal Wine Rackprovides a durable storage solution for up to four bottles of wine or 2-liter containers and can be removed for additional storage flexibility.
Control LocationInterior Up Front
Door Ajar Open AlarmYes
Max Cool Fast CoolYes
Water Filter Indicator ResetYes
Control LockoutNo
Volts120
Amps15
Door TypePull-Out
Door BinsNo
LightYes
Freezer Drawer Basket1 Full Width Lower Wire; 1 Full Width Upper Wire
Freezer Number Of ShelvesNone
IcemakerYes
Icemaker LocationFreezer
Fresh Flow Air Filter IncludedNo
Water Filter LocationInterior
Water Filter Part NumberEDR4RXD1
Connectivity
Works With
Dispenser OptionsFiltered Water
Dispenser TypeInterior Water Only
Types Of IceCubed
Freezer Volume Cu Ft6.45
Refrigerator Volume Cu Ft15.66
Total Volume Cu Ft22.11
Country Of OriginUSA
Fingerprint ResistantNo
Optional AccessoriesEDR4RXD1B, EVFILTER4B
Extended Service Plan ParentEW08IW1Y, EW08IW2Y, EW08IW4Y
Product To Product PairsKCGS950ESS, KXD4630YSS, KMBP107ESS, KVIB606DSS, KSEG950ESS, KCGS350ESS, KCGS556ESS, KVWB400DSS, KCGS956ESS, KOWT100ESS, KSDG950ESS, KFGD500ESS, KMBP100ESS, KOWT107ESS, KVWB600DSS, KVWB606DSS, KFGG500ESS, KCGS550ESS, KSGG700ESS, KTTS505ESS, KXD4636YSS, KFDD500ESS, KVWB406DSS, KOWT104ESS, KVUB600DSS, KSGB900ESS, KVUB606DSS
Kad RefrigeratorAutomatic Ice Maker; ExtendFresh Temperature Management System; FreshChill™ Temperature Controlled Full-Width Pantry; Interior Water Dispenser; LED Lighting; Produce Preserver
ULYes
Energy Star QualifiedYes
Cee TierTier I
ADA CompliantNo
Energy Rating Kwh Year585
Ule Environmentally Preferred CertifiedYes
Door FinishSmooth
Handle MaterialMetal
Hidden HingeYes
Reversible DoorNo
Handle ColorStainless Steel
Cabinet ColorGrey
Door StyleContour
Cabinet FinishTextured
Number Of Doors3
Base Grille ColorGrey
Handle TypeReach-Through Handle
Installation ConfigurationFreestanding
Type Of RefrigeratorFrench Door
Cooling TypeSingle Evaporator
Counter DepthNo
Humidity Controlled DrawersYes
LightingLED
Number Of Interior Shelves5
Pantry DrawerYes
Supplementary ContainersN/A
Deli DrawerNo
Non Climate Control Drawers
Liner FinishWhite Glossy
Temperature Controlled Drawers1 Full-Width
Door Bins1 Dairy; 2 Fixed Full-Width Gallon; 3 Adjustable Full-Width
Spill Proof Glass Shelves1 Fixed Full-Width; 1 Tuck Shelf; 3 Adjustable Half-Width
Carton Depth35.5"
Carton Height72.75"
Carton Width35.25"

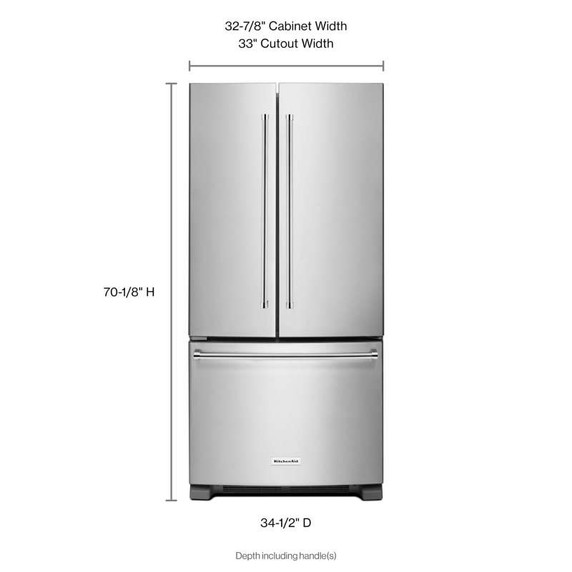

Depth Closed Excluding Handles32.0"
Depth Closed Including Handles34.5"
Depth With Door Open 90 Degree47.13"
Depth34.5"
Gross Weight265.0 lbs.
Height70.13"
Net Weight0.0 lbs.
Width32.88"
Cabinet Width32.63"
Cutout Height69.0"
Cutout Width33.0"
Depth Excluding Doors28.13"
Height To Top Of Cabinet68.88"
Height To Top Of Door Hinge70.13"
Popular Height70 Inch Tall
Popular Width33 Inch Wide
