Keep Warm settingKeep dishes from getting cold with this setting that delivers low heat to the oven.

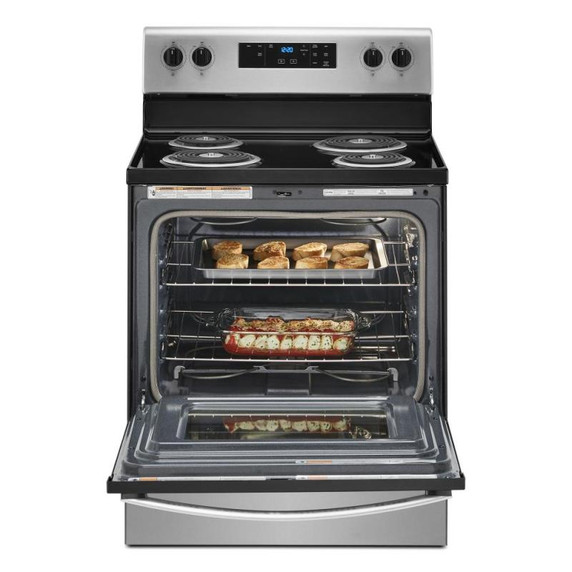

Large Oven WindowKeep an eye on your meal through the large oven window.
Closed Door BroilingMaintain the optimal cooking temperature for food while still keeping the kitchen comfortable and cool using this broiling temperature management system that helps prevent overheating.
Control Lock ModeDisable the control panel to avoid unintended use and easily clean controls.
Adjustable Self-Cleaning TechnologyClean without harsh chemicals or special cleaners by running this high-temperature setting that automatically cleans the oven according to a preprogrammed cycle.
4.8 Cu. Ft. CapacityEasily cook large meals with 4.8 cu. ft. capacity.
Upswept SpillGuard™ CooktopClean up faster with a cooktop that has raised edges to help contain spills.
Knob TypePlastic
Electronic Display TypeLED
Knob ColorBlack
Volts120
Power Cord IncludedYes
Amps40
Watts6
Fuel TypeElectric
Annual Energy Usage Kwh510
Country Of OriginUSA
Dishwasher SafeNo
Extended Service Plan ParentEW04IW4Y, EW04IW1Y, EW04IW2Y
Product To Product PairsWVU17UC0JW, UXT5230BDS, WVW53UC0LS, UXT5530AAS, WVU37UC0FS, WVW51UC0LS, UVL5430JSS, WVU17UC0JS, WVW53UC0HV, WVU57UC0FS, WVW57UC0FS, WVW73UC0LS, UXT4130ADS
Heating Element On Indicator LightYes
GriddleN/A
Hot Surface Indicator LightYes
Power Outage CompatibleNo
Automatic Convection Conversion Temperature AdjustNo
ULYes
ADA CompliantNo
CULNo
Energy Rating Kwh Year510
Handle MaterialMetal
Handle ColorStainless Steel
Door RemovableYes
Drawer TypeStorage Drawer
Handle TypeReach-Through Handle
Oven ConfigurationSingle Oven
Range ConfigurationFreestanding
Size In30
Range TypeFreestanding
Cooktop Surface MaterialPorcelain Coated Steel
Interior ColorBlack
Oven Cleaning TypeSelf-Clean
Oven Light Switch LocationOven Control
Number Of Oven Racks2
Oven Cooking SystemThermal
Number Of Rack Guides5
Bake Element Power2400W
Broiler Element Power3400W
Hidden Bake ElementNo
Number Of Oven Lights1
Oven Interior Depth In Inches18.5
Oven Interior Width In Inches24.5
Oven Light TypeIncandescent
Oven Rack TypeStandard (Both)
Broiler LocationTop Center
Oven Control TypeElectronic Touch
Oven Control Knob TypePlastic
Oven Control LocationRear Control
Oven Control Knob ColorBlack
Convection FunctionsNo
Cooktop Control TypeKnobs
Cooktop Surface ColorBlack
Cooktop ConfigurationAll Burners
Left Rear Element Burner Size6in.
Left Rear Element Burner TypeStandard
Number Of Cooking Element Burners4
Right Rear Element Burner TypeStandard
Cooktop Control LocationBackguard
Left Front Element Burner Size8in.
Left Front Element Burner TypeStandard
Right Front Element Burner Size6in.
Right Front Element Burner TypeStandard
Right Rear Element Burner Size8in.
Cooktop Element StyleCoil
Left Front Element Burner Power2400W
Left Rear Element Burner Power1500W
Right Front Element Burner Power1500W
Right Rear Element Burner Power2400W
Carton Depth29.0"
Carton Height48.75"
Carton Width32.0"
Depth Closed Excluding Handles25.31"
Depth Closed Including Handles28.0"
Depth With Door Open 90 Degree46.69"
Depth27.75"
Gross Weight151.0 lbs.
Height47.88"
Maximum Height47.88"
Minimum Height46.88"
Width29.88"
Cutout Depth24.0"
Cutout Height36.0"
Cutout Width30.0"
Capacity FT3 (cubic feet)4.8
