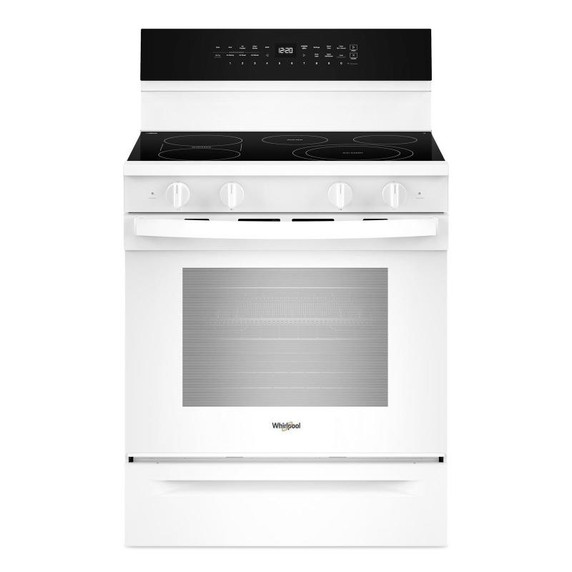

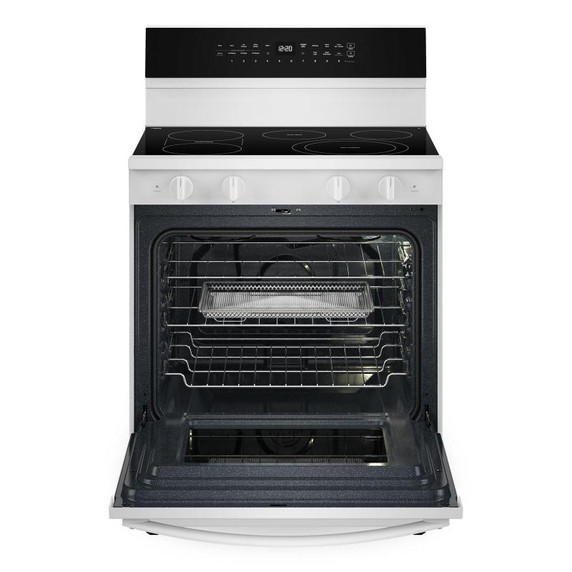

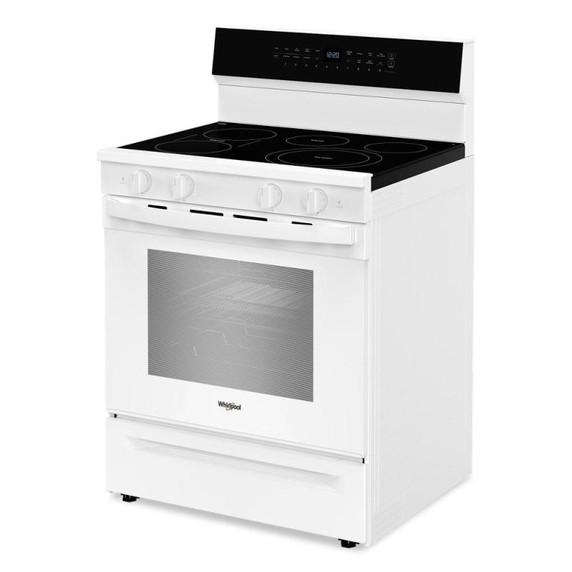

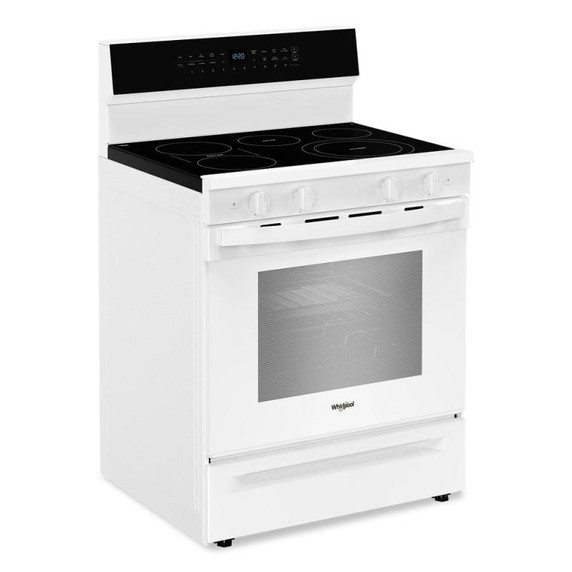

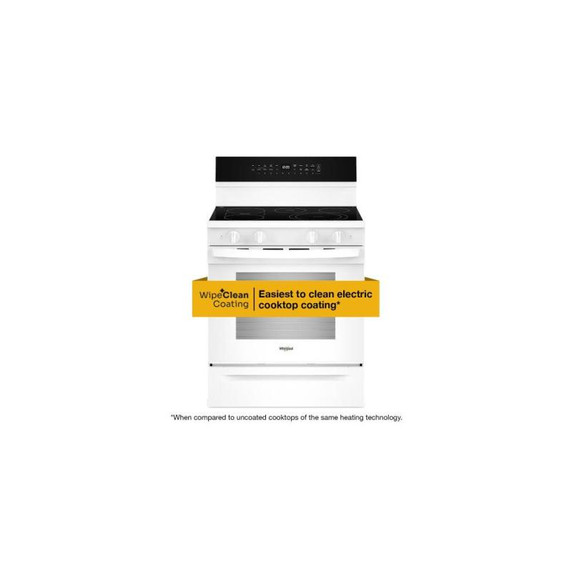

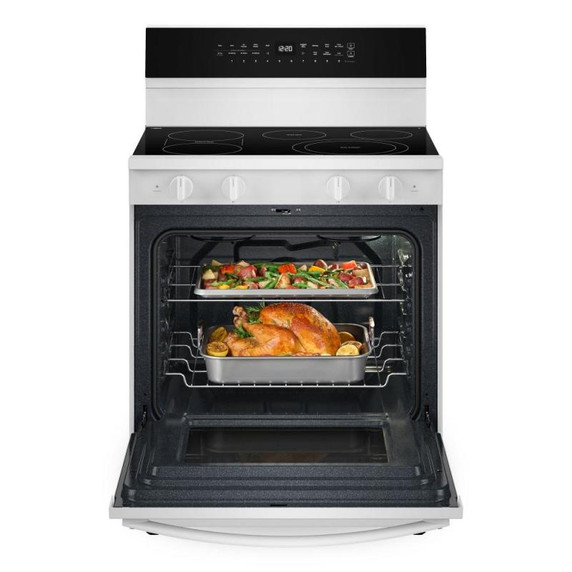

Whirlpool® 30-inch Smart Electric Range with Air Cooking Technology, WipeClean™ Coating, Steam/Self Cleaning, Rapid Preheat 5.3 CuFt Capacity YWFES7530RW
Whirlpool
Whirlpool® 30-inch Smart Electric Range with Air Cooking Technology, WipeClean™ Coating, Steam/Self Cleaning, Rapid Preheat 5.3 CuFt Capacity YWFES7530RW
Specifications
Country Of OriginUSA
Dishwasher SafeNo
Extended Service Plan Parent
Product To Product Pairs
Optional AccessoriesW10355051B, 4396096RB
Electrical
Volts120
Hz60
Power Cord IncludedNo
Amps40
Watts12
Certifications
ULYes
ADA CompliantNo
CULYes
Energy Rating Kwh Year578
Star K CertifiedKosher Consumer Friendly
Exterior
Handle MaterialMetal
Door RemovableYes
Drawer TypeStorage Drawer
Handle ColorWhite
Handle TypeReach-Through Handle

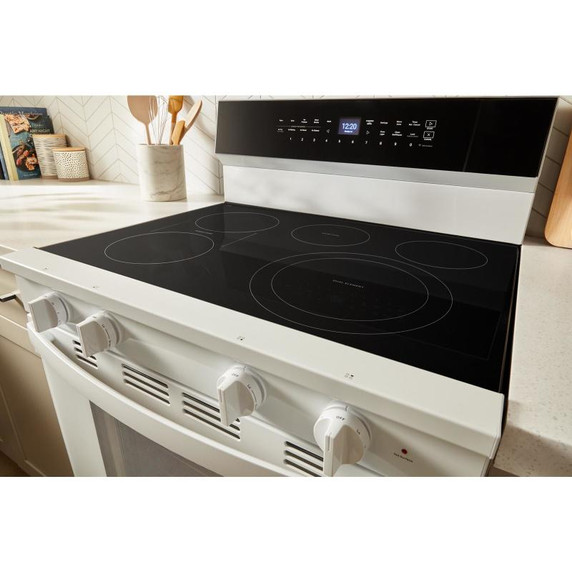

Cooktop Details

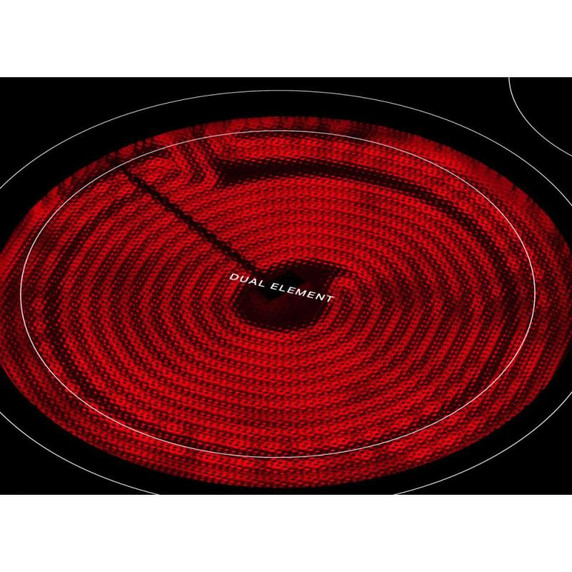

Right Front Element Burner TypeDual

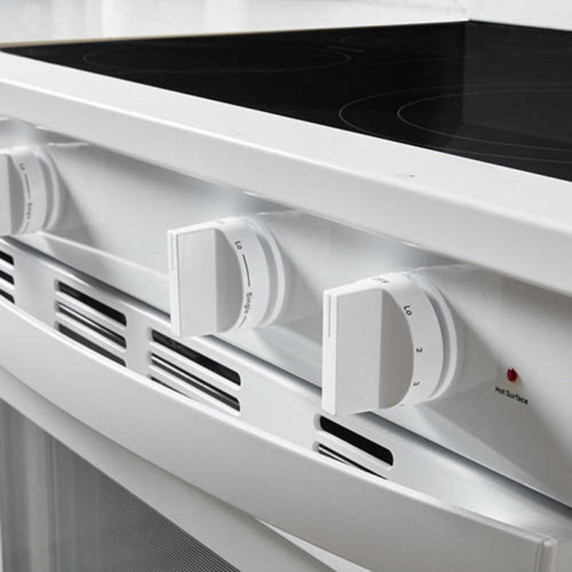

Cooktop Control TypeKnobs
Cooktop Surface ColorBlack
Cooktop ConfigurationAll Burners
Cooktop Element StyleCeran
Right Rear Element Burner Power1200W
Right Rear Element Burner Size6in.
Right Rear Element Burner TypeStandard
Number Of Cooking Element Burners5
Center Rear Element Burner Power100W
Center Rear Element Burner TypeWarming
Cooktop Control LocationBackguard
Left Front Element Burner Size8in.
Auto Re IgnitionNo
Left Front Element Burner Power1800W
Left Front Element Burner TypeBridge
Left Rear Element Burner Power1800W
Left Rear Element Burner Size8in.
Left Rear Element Burner TypeBridge
Ignition TypeN/A
Right Front Element Burner Size12in./9in.
Right Front Element Burner Power1000W/3000W
Features
Heating Element On Indicator LightYes
Hot Surface Indicator LightYes
Automatic Convection Conversion Temperature AdjustNo
LP ConvertibleNo
Power Outage CompatibleYes

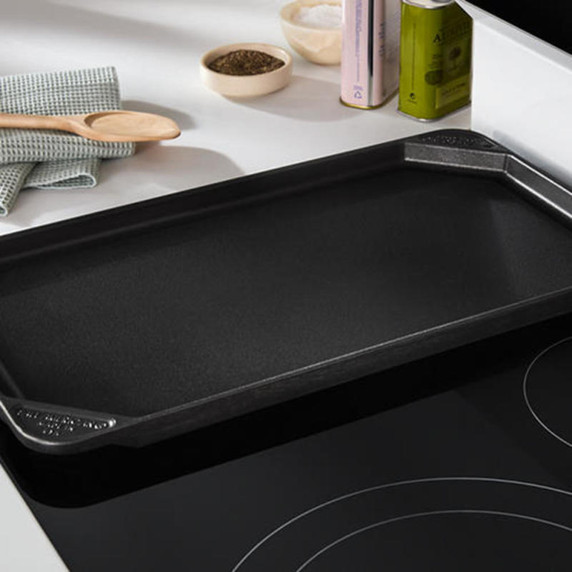

GriddleNo, Optional Accessory
Natural Gas ConvertibleNo
Configuration
Oven ConfigurationSingle Oven
Range ConfigurationFreestanding
Details
Hidden Bake ElementYes
Oven Light Switch LocationOven Control
Oven Light TypeHalogen
Interior ColorGrey
Number Of Oven Racks2
Oven Cleaning TypeSteam Clean
Oven Cooking SystemThermal
Number Of Rack Guides5

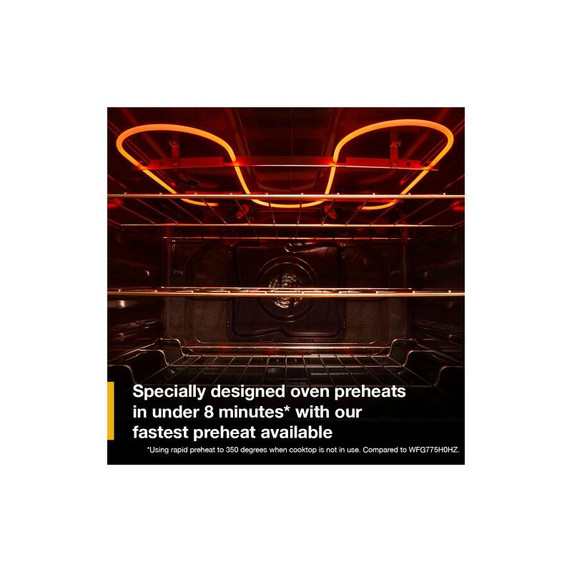

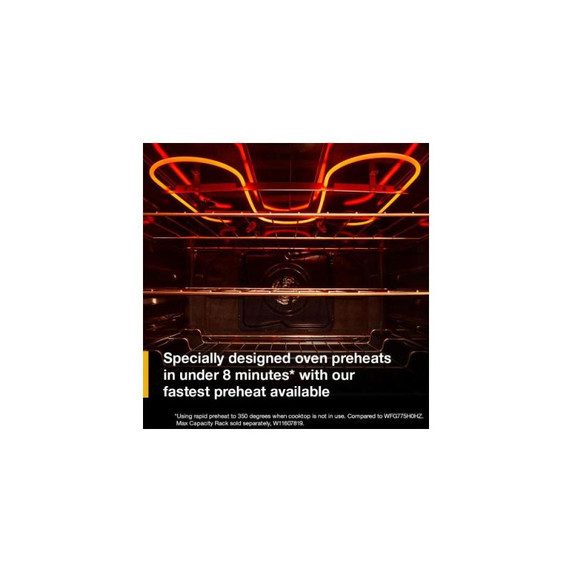

Bake Element Power2400W
Broiler Element Power3400W
Cooktop Surface MaterialGlass
Number Of Oven Lights1

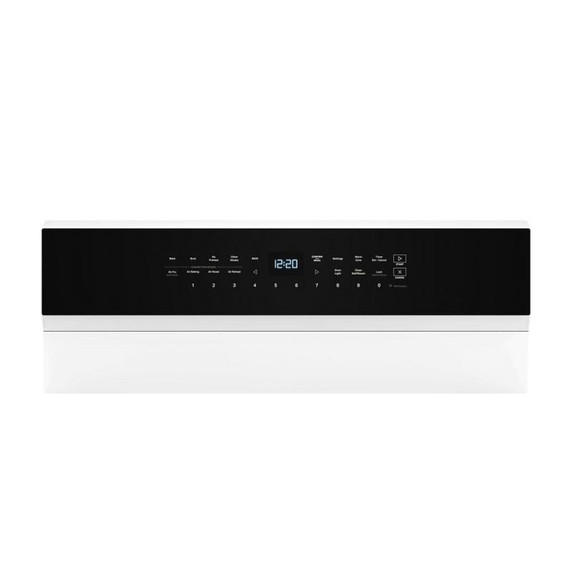

Oven Control TypeTap Touch
Broiler LocationTop Center
Oven Control LocationRear Control

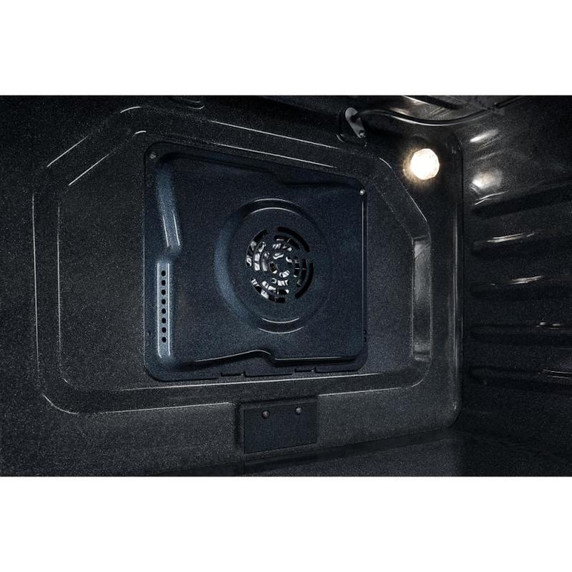

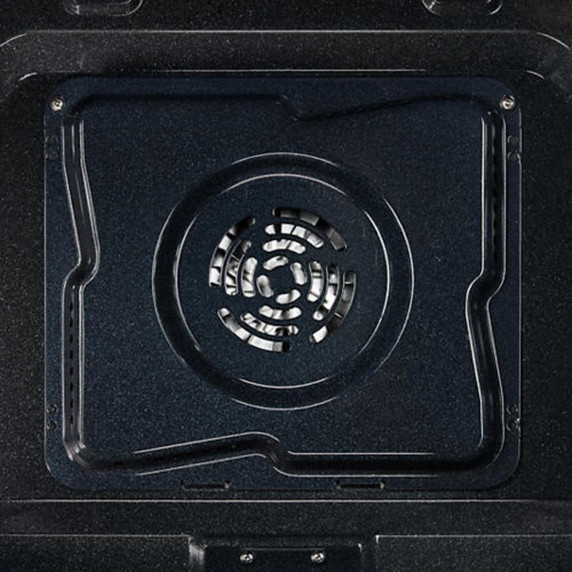

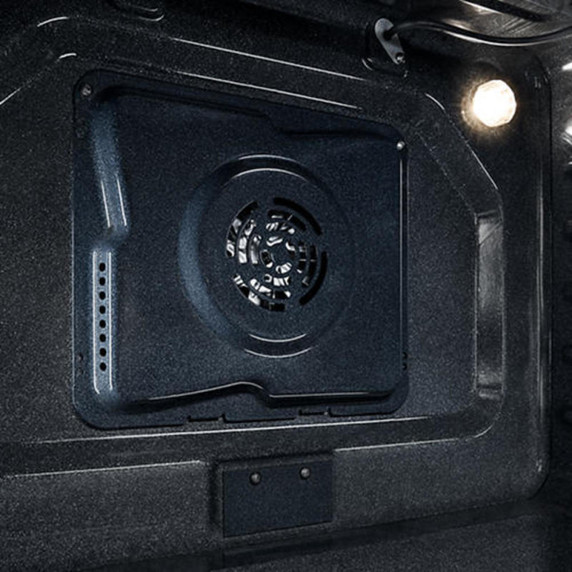

Convection Element TypeTrue
Oven Interior Depth In Inches20.75
Oven Interior Width In Inches24.38
Oven Rack Type2 Standard
Oven Control Knob TypeN/A
Configuration and Overview
Fuel TypeElectric

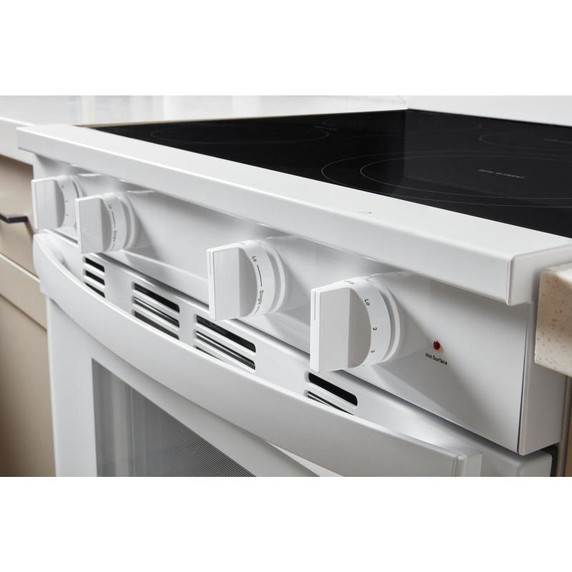

Controls
Knob TypePlastic
Knob ColorWhite
Description
Range TypeFreestanding
Compatibility
Works WithAmazon Alexa; Android; Google Assistant; Nest; iOS
ConnectivityApp; Bluetooth; Remote Access; Voice Controlled; WiFi
Energy
Annual Energy Usage Kwh578

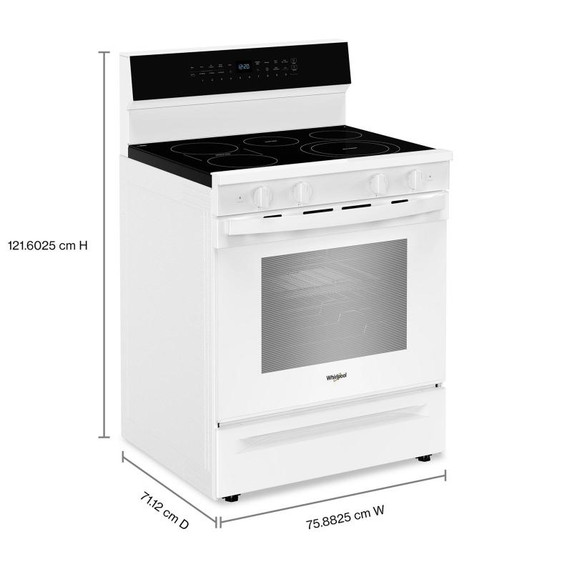

Depth Closed Excluding Handles25.31"
Depth Closed Including Handles28.0"
Depth With Door Open 90 Degree46.69"
Cutout Depth24.0"
Cutout Height36.0"
Cutout Width28.0"
Carton Depth29.0"
Carton Height49.0"
Carton Width32.0"
Depth28.0"
Gross Weight183.0 lbs.
Height47.88"
Maximum Height47.88"
Minimum Height46.5"
Width29.88"
Capacity FT3 (cubic feet)5.3
